Creating a Knowledge Graph Without LLMs

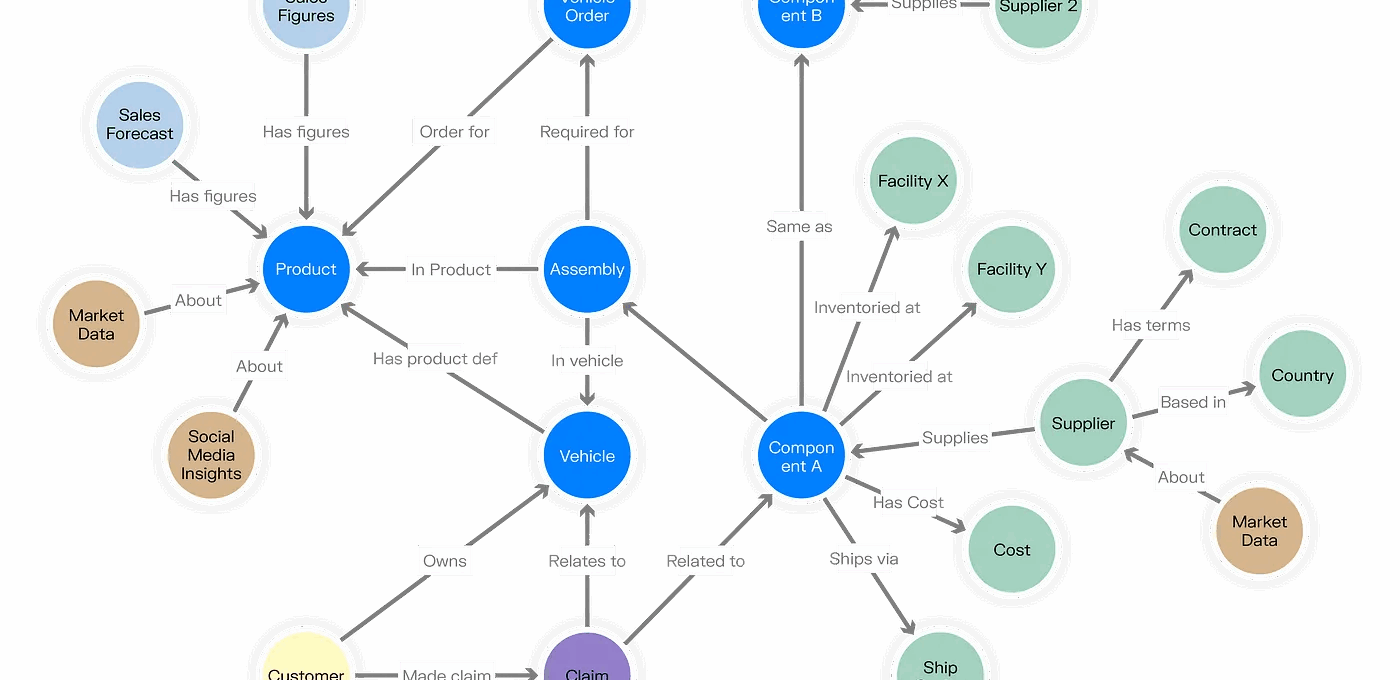

Knowledge Graph

Knowledge graphs transform complex information into interconnected networks of entities and relationships, mirroring how human brains connect concepts. Their growing adoption is linked to their enhancement of AI systems, particularly in LLMs and RAG pipelines.

In RAG applications, knowledge graphs surpass traditional document retrieval by providing granular, relationship-rich information. Their ability to map cross-document connections creates a unified semantic layer, enabling more contextually aware retrieval and improved AI responses.

The typical knowledge graph construction involves document chunking, followed by LLM-based entity and relationship extraction from each chunk. This process identifies key entities and establishes connections between them, creating a structured knowledge representation.

While LLM-based knowledge graphs offer high accuracy, there are scenarios where a simpler, more cost-effective approach is needed. Using libraries like spaCy, we can create knowledge graphs without relying on LLMs, making it accessible for projects with limited resources or when quick prototyping is required. Though the accuracy might be lower, this approach provides a practical solution for organizations looking to experiment with knowledge graphs without the computational and financial overhead of LLM implementation.

Pipeline

Initial Setup and SpaCy Loading

First, we’ll import the necessary libraries and load SpaCy’s large English model, which includes word vectors for better language understanding. This sets up our foundation for natural language processing tasks.

import spacyfrom typing import List, Dict, Tuple, Setfrom collections import defaultdictfrom rapidfuzz import fuzz# Load the large English model which includes word vectorsnlp = spacy.load("en_core_web_lg")# Example usagetext = """Bilbo Baggins celebrates his birthday and leaves the Ring to Frodo, his heir.Gandalf suspects it is a Ring of Power and counsels Frodo to take it away."""# Process the text with SpaCydoc = nlp(text)

Entity Extraction

Here we’ll identify and extract named entities from the text, ensuring we capture unique entities while preserving their original context and type information.

def extract_entities(doc) -> List[Dict]:    """Extract and categorize named entities from a SpaCy doc."""    entities = []    unique_entities = set()        for ent in doc.ents:        if ent.text not in unique_entities:            entity_dict = {                'text': ent.text,                'type': ent.label_,                'start': ent.start_char,                'end': ent.end_char            }            entities.append(entity_dict)            unique_entities.add(ent.text)        return entities, unique_entities# Example usageentities, unique_entities = extract_entities(doc)

Basic Relation Extraction

We’ll extract subject-verb-object relationships from the text, capturing how entities interact with each other through actions and connections.

def extract_basic_relations(doc) -> List[Dict]:    """Extract subject-verb-object relations from a SpaCy doc."""    relations = []        for token in doc:        if token.pos_ == "VERB":            # Find subjects            subjects = []            for subj in token.lefts:                if subj.dep_ in ("nsubj", "nsubjpass"):                    subjects.append(subj)                    # Include conjunctions (e.g., "Sam and Frodo")                    subjects.extend([child for child in subj.children                                   if child.dep_ == "conj"])                        # Find objects            objects = []            for obj in token.rights:                if obj.dep_ == "dobj":                    objects.append(obj)                    # Include conjunctions                    objects.extend([child for child in obj.children                                  if child.dep_ == "conj"])                elif obj.dep_ == "prep":  # Handle prepositional objects                    objects.extend([child for child in obj.children                                  if child.dep_ == "pobj"])                        # Create relations for each subject-object pair            for subj in subjects:                for obj in objects:                    relation = {                        'subject': subj.text,                        'relation': token.lemma_,                        'object': obj.text,                        'sentence': doc[token.sent.start:token.sent.end].text                    }                    relations.append(relation)        return relations# Example usagebasic_relations = extract_basic_relations(doc)

Pronoun Resolution

To improve the quality of our knowledge graph, we’ll implement a simple pronoun resolution system that maps pronouns to their most likely antecedent entities.

def resolve_pronouns(doc, entity_positions: List[Tuple]) -> Dict[str, str]:    """Create a mapping of pronouns to their likely antecedents."""    pronouns = {"them", "it", "they", "who", "he", "she", "him", "his", "her", "their"}    pronoun_map = {}        for token in doc:        if token.text.lower() in pronouns:            # Find the nearest preceding entity            previous_entities = [ent for ent in entity_positions                                if ent[1] < token.idx]            if previous_entities:                # Use the most recent entity as the antecedent                pronoun_map[token.text] = previous_entities[-1][0]        return pronoun_map# Example usageentity_positions = [(ent.text, ent.start_char, ent.end_char)                    for ent in doc.ents]pronoun_map = resolve_pronouns(doc, entity_positions)

Fuzzy Entity Matching

To handle variations in entity names, we’ll implement fuzzy matching that can identify similar entities and standardize their references.

def fuzzy_match_entity(text: str, entities: set, threshold: float = 0.9) -> str:    """Match text to the most similar entity using fuzzy matching."""    best_match = None    best_ratio = 0    text_lower = text.lower()        for entity in entities:        entity_lower = entity.lower()                # Try exact word matching first        if text_lower in entity_lower.split() or entity_lower in text_lower.split():            if len(text) > 3:  # Avoid matching very short words                return entity                # Try partial string matching        if text_lower in entity_lower or entity_lower in text_lower:            if len(text) > 3:                return entity                # Calculate token sort ratio for word order differences        ratio = fuzz.token_sort_ratio(text_lower, entity_lower) / 100.0                # If needed, try partial ratio for substring matches        if ratio < threshold:            ratio = fuzz.partial_ratio(text_lower, entity_lower) / 100.0                    if ratio > threshold and ratio > best_ratio:            best_match = entity            best_ratio = ratio        return best_match if best_match else text# Example usagetest_text = "Baggin"  # Misspelled namematched_entity = fuzzy_match_entity(test_text, unique_entities)

Extracting Relations From Text

Finally, we’ll combine all our components into a single pipeline that processes text and generates a complete knowledge graph representation.

def process_text_pipeline(text: str) -> Dict:    """Process text through the complete pipeline."""    # Step 1: Process with SpaCy    doc = nlp(text)        # Step 2: Extract entities    entities, unique_entities = extract_entities(doc)        # Step 3: Get entity positions for pronoun resolution    entity_positions = [(ent['text'], ent['start'], ent['end'])                        for ent in entities]        # Step 4: Create pronoun mapping    pronoun_map = resolve_pronouns(doc, entity_positions)        # Step 5: Extract basic relations    relations = extract_basic_relations(doc)        # Step 6: Resolve pronouns and fuzzy match entities in relations    resolved_relations = []    for rel in relations:        resolved_rel = rel.copy()                # Resolve subject        if rel['subject'].lower() in pronoun_map:            resolved_rel['subject'] = pronoun_map[rel['subject'].lower()]        else:            resolved_rel['subject'] = fuzzy_match_entity(                rel['subject'], unique_entities            )                # Resolve object        if rel['object'].lower() in pronoun_map:            resolved_rel['object'] = pronoun_map[rel['object'].lower()]        else:            resolved_rel['object'] = fuzzy_match_entity(                rel['object'], unique_entities            )                resolved_relations.append(resolved_rel)        return {        'entities': entities,        'relations': resolved_relations,        'pronoun_map': pronoun_map    }# Example usage of the complete pipelinetext = """Bilbo Baggins celebrates his birthday and leaves the Ring to Frodo, his heir. Gandalf suspects it is a Ring of Power and counsels Frodo to take it away."""result = process_text_pipeline(text)

Creating the Knowledge Graph

First, we’ll create a class to handle our knowledge graph operations using NetworkX:

import networkx as nximport matplotlib.pyplot as pltfrom typing import List, Dictimport loggingclass LORKnowledgeGraph:    def __init__(self):        """Initialize the NetworkX graph with multi-directed edges."""        self.G = nx.MultiDiGraph()        logging.basicConfig(level=logging.INFO)        self.logger = logging.getLogger(__name__)    def create_entity_node(self, entity: str):        """Create a node with sanitized label."""        label = entity.replace(' ', '_').replace('-', '_').replace("'", '')        if not label[0].isalpha():            label = 'N_' + label        self.G.add_node(label, name=entity)            def create_relationship(self, subject: str, relation: str, object: str):        """Create a relationship between two nodes."""        subject_label = subject.replace(' ', '_').replace('-', '_').replace("'", '')        object_label = object.replace(' ', '_').replace('-', '_').replace("'", '')                if not subject_label[0].isalpha():            subject_label = 'N_' + subject_label        if not object_label[0].isalpha():            object_label = 'N_' + object_label                    relation_type = relation.upper().replace(' ', '_')        self.G.add_edge(subject_label, object_label, relation=relation_type)    def build_from_relations(self, relations: List[Dict]):        """Build the graph from extracted relations."""        for relation in relations:            self.create_entity_node(relation['subject'])            self.create_entity_node(relation['object'])            self.create_relationship(                relation['subject'],                relation['relation'],                relation['object']            )

Now, let’s extend our pipeline to process multiple text segments and build a knowledge graph:

def process_multiple_texts(texts: List[str]) -> nx.MultiDiGraph:    """Process multiple text segments and create a knowledge graph."""    # Initialize the knowledge graph    kg = LORKnowledgeGraph()        # Process each text segment    for text in texts:        # Process text through our existing pipeline        result = process_text_pipeline(text)                # Add extracted relations to the knowledge graph        kg.build_from_relations(result['relations'])        return kg.Gdef visualize_knowledge_graph(G: nx.MultiDiGraph, figsize=(16, 12)):    """Visualize the knowledge graph."""    plt.figure(figsize=figsize)        # Calculate node sizing based on degree centrality    degrees = dict(G.degree())    node_sizes = [1500 + (degrees[node] * 100) for node in G.nodes()]        # Use Graphviz layout for better visualization    pos = nx.nx_agraph.graphviz_layout(G, prog='neato')        # Draw the graph with curved edges and node labels    nx.draw_networkx_edges(G, pos,                          edge_color='gray',                         alpha=0.4,                         arrows=True,                         connectionstyle='arc3,rad=0.2')        nx.draw_networkx_nodes(G, pos,                         node_color='lightblue',                         node_size=node_sizes,                         alpha=0.7)        # Add labels    node_labels = nx.get_node_attributes(G, 'name')    edge_labels = nx.get_edge_attributes(G, 'relation')        nx.draw_networkx_labels(G, pos, node_labels, font_size=8)    nx.draw_networkx_edge_labels(G, pos, edge_labels, font_size=6)        plt.title("Knowledge Graph Visualization")    plt.axis('off')    return plt

Final Result

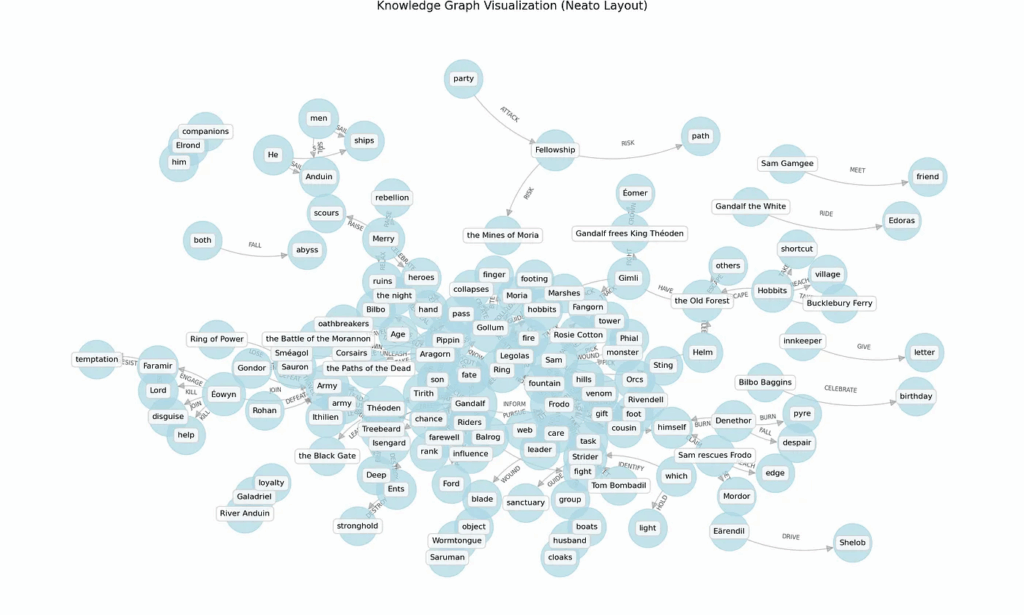

Here’s what the final result on multiple chunks of text from Lord of the Rings looks like:

Conclusion

This lightweight approach to knowledge graph construction demonstrates that valuable semantic networks can be created without relying on large language models. While LLM-based approaches may offer higher accuracy and more nuanced relationship extraction, the combination of SpaCy, fuzzy matching, and basic NLP techniques provides a robust foundation for organizations looking to experiment with knowledge graphs. This method not only offers significant cost savings but also provides greater transparency and control over the extraction process. As knowledge graphs continue to evolve as critical components of modern AI systems, having accessible, LLM-free alternatives ensures that organizations of all sizes can harness the power of structured knowledge representation for their specific use cases.
